Soma



- Flexo / 8 colors / UV inks.

- High end/Photo resolution Print with a screen of 220 lines per inch.

- UV Coating & Lacquers for creating special effects.

- Low migration, environmentally friendly inks with zero emissions to the atmosphere.

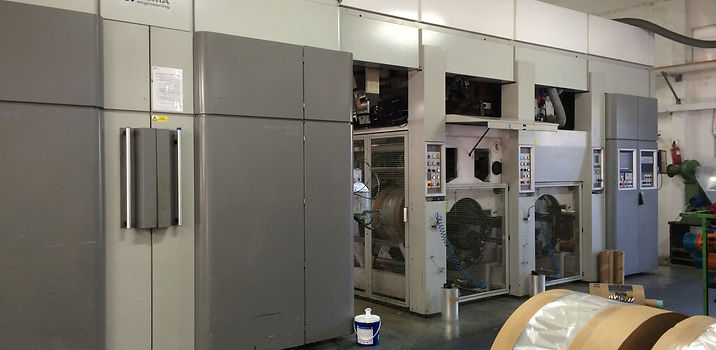

Machine # 7855

Flexographic

Machine manufacturer: Soma

Model: MINI UVG

Type : CI

Year: 2007

Number of colours: 8

Gearless: yes

Gear pitch: 10 mm

Sleeve/anilox change from the side: yes

Max. web width: 805 mm

Max. printing width: 800 mm

Min.- Max. printing repeat: 358-600 mm

Materials – thickness all mateirals

Unwind type: automatic

Max. unwind reel diameter: 800 mm

Rewind type: automatic

Max. rewind reel diameter: 800mm

Number and sizes airshafts: 4

Drying type: UV

Edge guide(s): yes

Video camera: yes

Viscosity control: no

Inline slitting: no

Cylinder hoists: yes

Number of aniloxes

Number of printing cylinders: 13*8= 104

Number of sleeves: 104

Number of gears:  104

Manuals available: yes

Spare parts: yes

Available from: immidiate

Machine can be seen in production: yes
